DS5220-2D Wired 2D Handheld Barcode Scanner
The DS5220-2D is a professional-grade wired 2D handheld barcode scanner featuring advanced CMOS image recognition technology. Designed for high-performance scanning across various media including paper, goods, and digital screens, this scanner is ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payment, and inventory management applications.
Key Features
- Ergonomic design for comfortable extended use
- Reads all mainstream 1D & 2D barcodes with ease
- High-performance 32-bit processor for fast decoding (3mil resolution)
- Supports multiple languages and operating systems
- Dual interface options: USB and RS232
- Ideal for supermarkets, warehouses, mobile payments, and chain stores
Technical Specifications
Performance
| Scan Type |
CMOS |
| Light Source |
Red Light LED 525±10nm (aim), 5600K LED (Lighting) |
| CPU |
32-bit |
| Resolution |
640*480 (global exposure) |
| Minimum Resolution |
≥3mil/0.076mm (PCS90%, CODE 39) |
| Decoding Speed |
65CM/S |
| Depth of Field |
20mm~530mm |
| Scan Modes |
Manual, Auto Sense, Continuous |
| Prompt Method |
LED indicator, buzzer |
| Field of View |
Horizontal 40°× Vertical 30° |
| Scan Angle |
Roll±360°, Pitch±60°, Skew±55° |
| Print Contrast Signal |
≥20% |
| Supported Systems |
Windows, Mac OS, IOS, Linux, Unix, Android |
Physical Parameters
| Weight |
≈159.6g (without cable) |
| Dimensions |
L68.4mm × W170.6mm × H87.6mm |
| Communication Mode |
USB |
| Power Supply |
DC5V input, Standby current:50mA, Decoding current:180mA |
Environmental Specifications
| Operating Temperature |
-20ºC to 55ºC |
| Storage Temperature |
-20ºC to 60ºC |
| Humidity |
5% to 95% (non-condensing) |
| Drop Height |
1.5m |
| Temperature Test |
30 minutes at 60ºC high temp, 30 minutes at -20ºC low temp |
| Transport Vibration Test |
10H@125RPM |
Depth of Field Specifications
| Barcode Type |
Barcode Density |
Nearest |
Furthest |
| Code 39 |
0.1mm (4mil) |
50mm |
75mm |
| Code 39 |
0.25mm (10mil) |
30mm |
200mm |
| Code 39 |
1mm (40mil) |
115mm |
530mm |
| UPC/EAN |
0.33mm (13mil) |
40mm |
260mm |
| QR Code |
20.0mil |
20mm |
165mm |
| Data Matrix |
10mil |
40mm |
100mm |
| PDF 417 |
6.8mil |
30mm |
140mm |
Supported Symbologies
1D Barcodes: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D Barcodes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Standard Accessories
| Cable |
USB, connects the scanner to a host device and provides power |
| Receiver |
Used to receive and transmit scanner data |

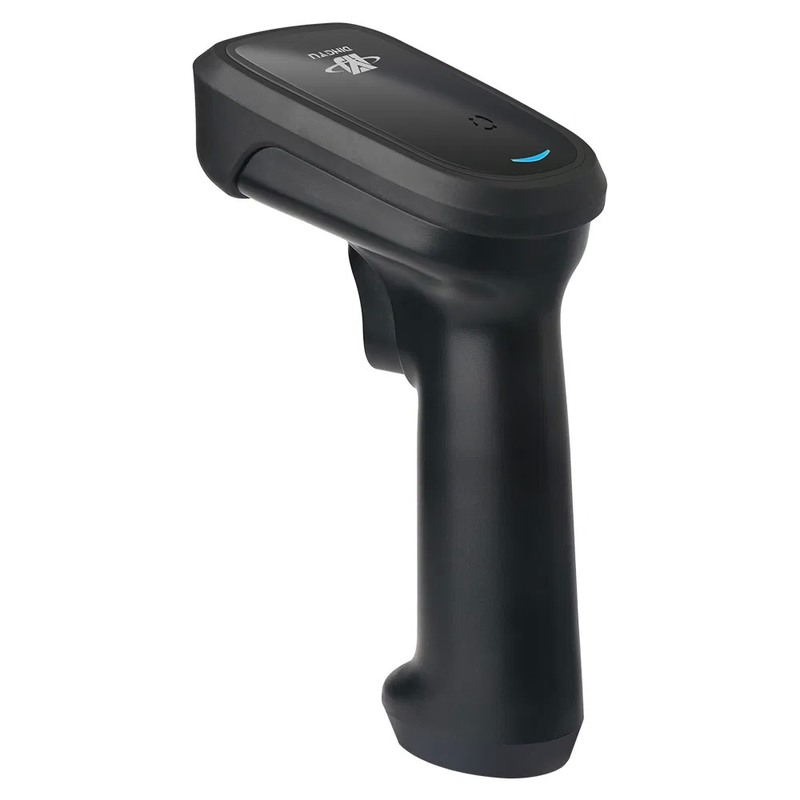

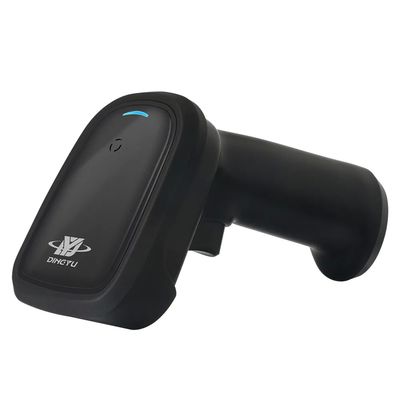

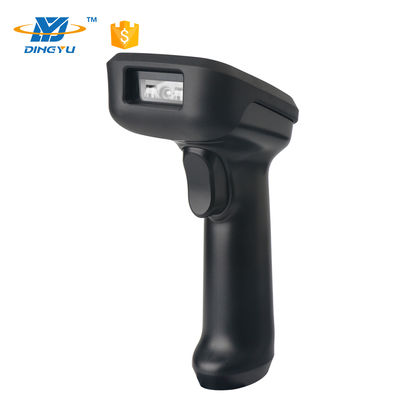

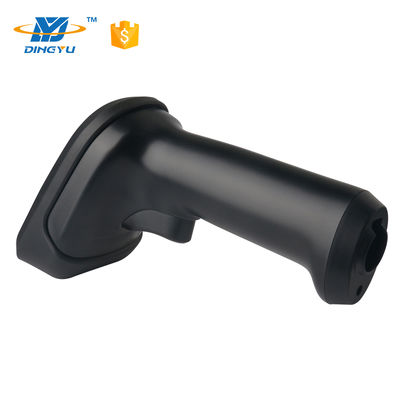

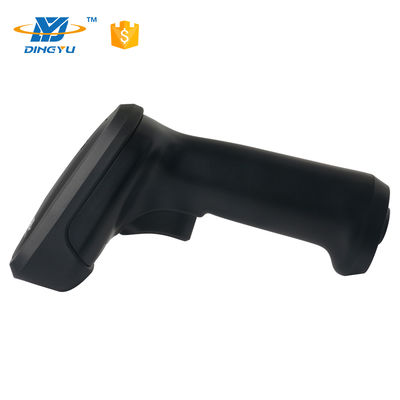

Product Images
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. We maintain strict quality control with professional QC teams and testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our barcode scanners are CE, FCC, and ROHS certified.
Q2: What quality control measures do you implement?
We conduct rigorous testing including wire bend tests (1 million cycles), button durability tests (1 million presses), and comprehensive device testing before shipment.
Q3: What is the warranty period for your barcode scanners?
We provide a 12-month warranty for all our barcode scanners.
Q4: How do you maintain stable performance across your products?
We implement flow line production throughout our manufacturing process. Each product undergoes at least 4 quality tests before delivery to ensure consistent performance.
Q5: Do you offer OEM or ODM services for barcode scanners?
Yes, we provide OEM services including custom branding (logos, packaging, manuals) and have a dedicated technical team to support ODM projects.
Q6: What are your company's strengths?
As a professional scanner manufacturer, we have specialized departments for R&D, production, testing, marketing, and customer service, each led by experienced directors to ensure product excellence and customer satisfaction.
Q7: Do I need to install drivers for the scanner?
No, our scanners support plug-and-play functionality without requiring driver installation. They are compatible with Windows, Mac OS, IOS, Linux, UNIX, and Android systems.
