Industrial Long Range Rugged Handheld Scanner
Portable QR & Bar Code Reader - 1D/2D Wired/Wireless Barcode Scanner
The DS5220-2D is a wired 2D handheld barcode scanner featuring advanced CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payments, express delivery, inventory management, food traceability, and asset tracking.
Key Features
- Ergonomic design for comfortable extended use
- Reads all mainstream 1D & 2D barcodes with ease
- High-performance processor for fast decoding (3mil resolution)
- Supports multiple languages and operating systems
- Interfaces: USB, RS232
- Wide application in supermarkets, warehouses, mobile payments, and chain stores
Performance Specifications
| Scan Type |
CMOS |
| Light Source |
Red Light LED 525±10nm (aim), 5600K LED (Lighting) |
| CPU |
32-bit |
| Resolution |
640*480 (global exposure) |
| Minimum Resolution |
≥3mil/0.076mm (PCS90%, CODE 39) |
| Decoding Speed |
65CM/S |
| Depth of Field |
20mm~530mm |
| Scan Modes |
Manual, Auto Sense, Continuous |
| Prompt Method |
LED indicator, buzzer |
| Field of View |
Horizontal 40° × Vertical 30° |
| Scan Angle |
Roll±360°, Pitch±60°, Skew±55° |
| Print Contrast Signal |
≥20% |
| Supported Systems |
Windows, Mac OS, IOS, Linux, Unix, Android |
Physical Parameters
| Weight |
≈159.6g (without cable) |
| Dimensions |
L68.4mm × W170.6mm × H87.6mm |
| Communication Mode |
USB |
| Interface Type |
USB |
| Power Supply |
DC5V input, Standby current:50mA, Decoding current:180mA |
Environmental Specifications
| Operating Temperature |
-20ºC to 55ºC |
| Storage Temperature |
-20ºC to 60ºC |
| Humidity |
5% to 95% (non-condensing) |
| Drop Height |
1.5m |
| Temperature Test |
30 minutes for high temp. (60ºC), 30 minutes for low temp. (-20ºC) |
| Transport Vibration Test |
10H@125RPM |
Accessories
| Cable |
USB, connects the scanner to a host device and charging |
| Receiver |
Used to receive and transmit scanner data |
Depth of Field Specifications
| Barcode Type |
Barcode Density |
Nearest |
Furthest |
| Code 39 |
0.1mm (4mil) |
50mm |
75mm |
| Code 39 |
0.25mm (10mil) |
30mm |
200mm |
| Code 39 |
1mm (40mil) |
115mm |
530mm |
| UPC/EAN |
0.33mm (13mil) |
40mm |
260mm |
| QR Code |
20.0mil |
20mm |
165mm |
| Data Matrix |
10mil |
40mm |
100mm |
| PDF 417 |
6.8mil |
30mm |
140mm |

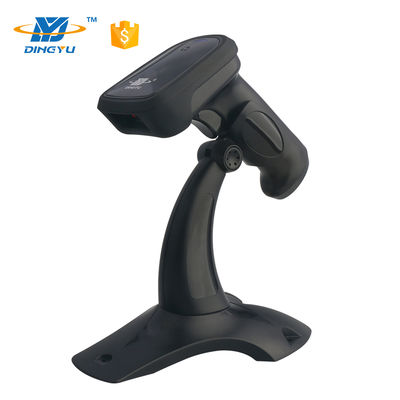

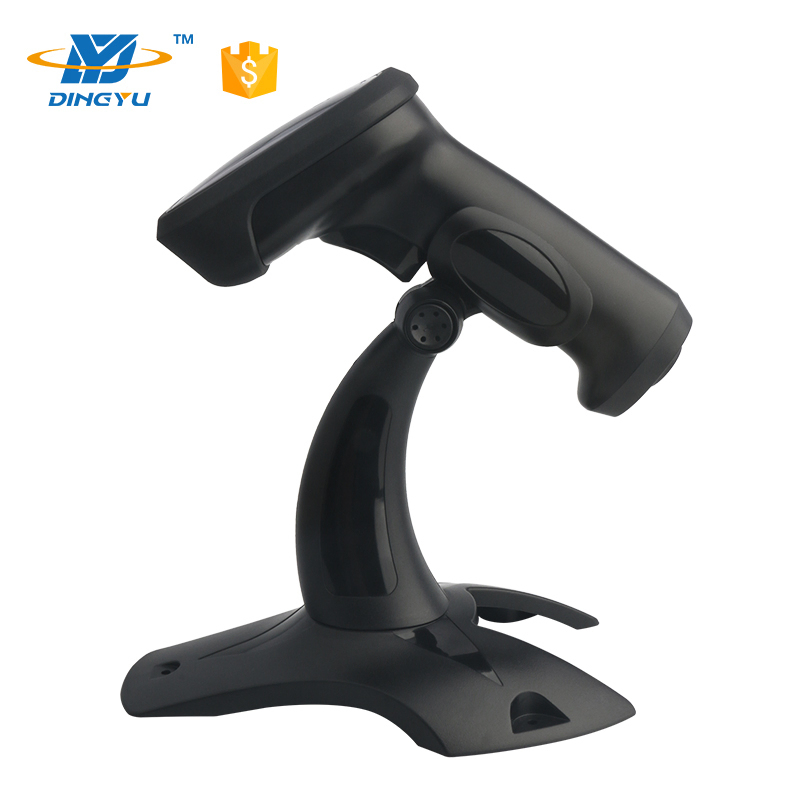

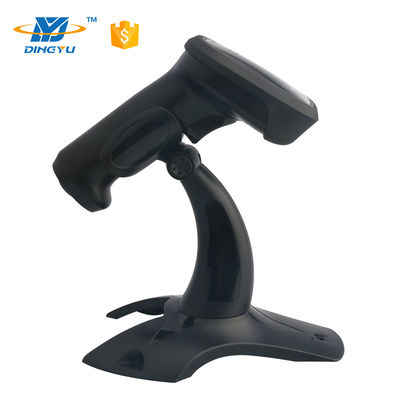

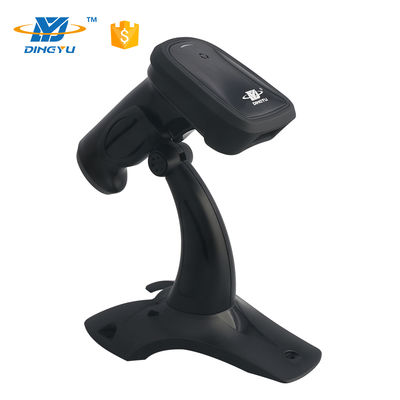

Product Images
Frequently Asked Questions
Q1: How do you ensure high quality barcode scanners?
DYscan: We are professional manufacturers and developers of barcode scanners with 18 years of field experience. Our professional QC team uses testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROSH certifications.
Q2: How do you perform quality control?
DYscan: We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipment.
Q3: What is the warranty period?
DYscan: 12 months warranty.
Q4: How do you ensure stable performance?
DYscan: We use flow line production throughout processing. Every product is tested at least 4 times before delivery.
Q5: Do you provide OEM/ODM services?
DYscan: We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.
Q6: What are your company strengths?
DYscan: As professional scanner manufacturers, we have specialized departments including R&D for new products, production for manufacturing and testing, and dedicated marketing and sales teams.
Q7: Do I need to install drivers?
DYscan: No drivers required. Our scanners support plug-and-play functionality with Windows, Mac OS, IOS, Linux, UNIX, and Android systems.
