Name: Handheld 2D Barcode Scanner with 1D 2D Capability 640*480 Resolution and 30-600mm Depth of Field for POS Supermarket Use
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Dom Produkty Skaner kodów 2D

Handheld 2D Barcode Scanner with 1D 2D Capability 640*480 Resolution and 30-600mm Depth of Field for POS Supermarket Use

Szczegóły Produktu:

Zapłata:

Minimalne zamówienie:	1
Cena:	15

Kontakt

Szczegółowy opis produktu

Model nr.:	DS5900-2D	Typ interfejsu:	USB
Element skanowania:	CMOS	Rozdzielczość aparatu:	640*480
Rozdzielczość kodu kreskowego:	3MIL Code39	Głębokość pola:	30-600 mm
Tryb skanowania:	Ręczne, ciągłe, automatyczne skanowanie	Wydrukuj kontrast:	15%
CPU:	32-bitowy	Długość kabla:	1,5 m
Waga:	160G	Zasilacz:	Napięcie stałe 5V 200mA
Wysokość zrzutu:	1,5 m	wymiar:	L165,5 mm * W63,5 mm * H92,3 mm
Temperatura przechowywania:	-40 do 60 stopni
Podkreślić:	1D 2D Barcode Scanner , 640*480 Resolution QR Code Scanner , 30-600mm Depth of Field Handheld Barcode Reader

Automatic Fast Scanning with Wired USB POS Supermarket Handheld 1D 2D Barcode Reader Scanner

1D 2D QR Code Wired Scanner Handheld POS Terminal Barcode Scanner

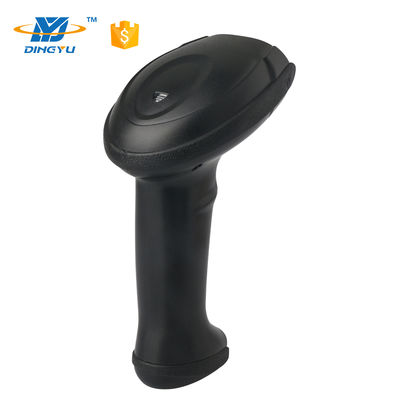

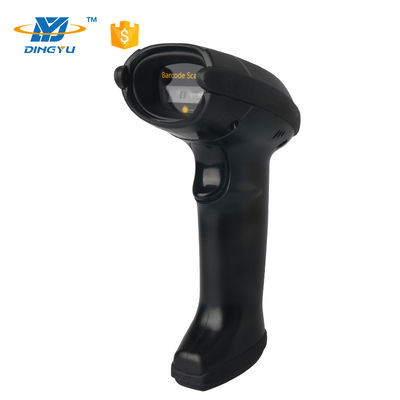

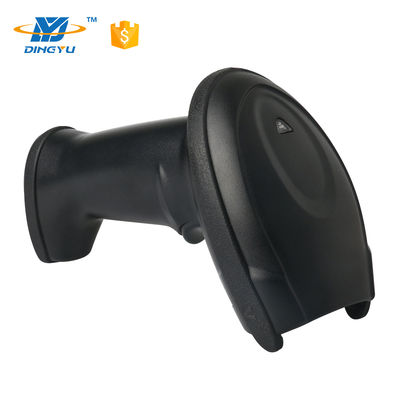

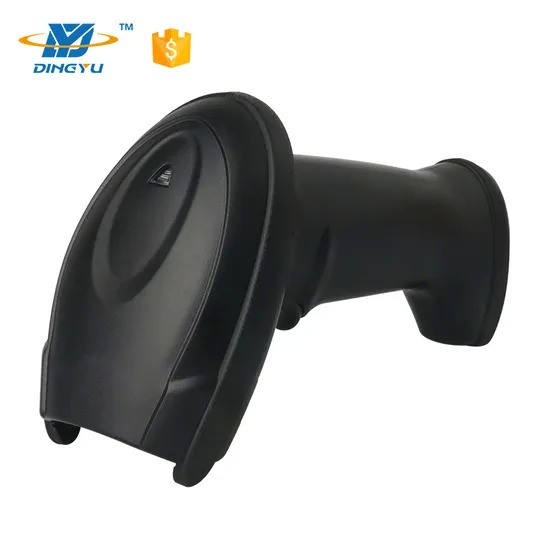

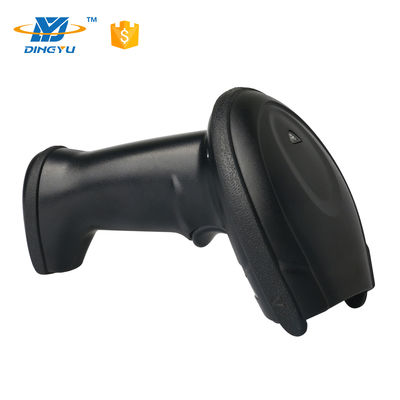

The DS5900-2D is a durable wired 2D handheld barcode scanner with excellent fall resistance. It efficiently reads barcodes from various surfaces including paper, goods, and digital screens. Ideal for multiple industries including manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Product Parameters

Scan Type	CMOS
Light Source	Red Light LED 525±10nm(aim), 5600K LED (Lighting) Note: Global exposure camera with automatic brightness adjustment based on reading distance
CPU	32-bit
Resolution	640*480
Minimum Resolution	≥3mil/0.1mm(PCS90%,CODE 39)
Decoding Speed	65CM/S
Depth of Field	30-600mm
Scan View	41° * 31°
Scan Mode	Manual, Continuous, Auto Sense
Scan Angle	Roll:±360°, Pitch:±60° or greater, Yaw:±55° or greater
Print Contrast Signal	≥15%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Standard 2 of 5 (IATA 2 of 5), Codabar (NW-7), MSI, GS1 Databar (Omnidirectional, Limited, Expanded), China Post, Tepepen, Febraban (Brazil bank code), GS1 Composite, Japan post, etc. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, etc.
Weight	≈160g (without cable)
Dimensions	L165.5mm * W63.5mm * H92.3mm
Interface Type	USB
Cable Length	1.8m
Power Supply	DC5V input, decoding current: 200mA
Operating Temperature	-20ºC to 55ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temperature Test	30 minutes for high temp., 30 minutes for low temp.
High Temp.	60ºC
Low Temp.	-20ºC
Transport Vibration Test	10H@125RPM
