Name: Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Dom Produkty Silnik skanowania kodów kreskowych

Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning

Szczegóły Produktu:

Zapłata:

Minimalne zamówienie:	1
Cena:	10

Kontakt

Szczegółowy opis produktu

Nr modelu:	DE2290H	Typ interfejsu:	USB
Prędkość skanowania:	35 CM/S	Element skanowania:	CMOS
Rezolucja:	3MIL/0,076 mm	Czujnik obrazu:	640*480
Tryb skanowania:	Automatyczne skanowanie, ciągłe	Wydrukuj kontrast:	20%
Wymiar:	21,3 mm dł. * 15,50 mm szer. * 11,50 mm wys	Pole widzenia:	41° * 31°
Typ skanowania:	CMOS, globalna migawka	kabel fc:	5 cm
Wysokość zrzutu:	1,2 m	Waga:	3,5 g
Głębokość pola:	40-530 mm
Podkreślić:	1 Year Warranty Barcode Scan Engine , 1.2m Drop Height Barcode Scanner Module , 3.5g Weight Embedded Barcode Scanner

Embedded 1D/2D Barcode Scanning Engine CMOS Intelligent Identification Module

OEM Small High Sensitive Engine 1D/2D CMOS USB TTL Barcode Scanner Module

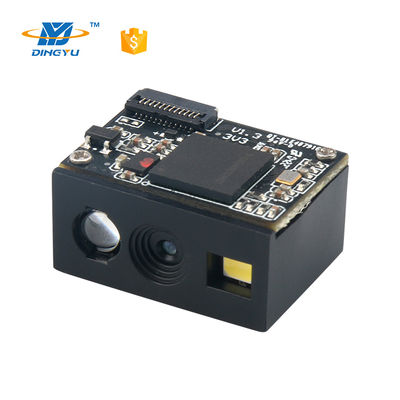

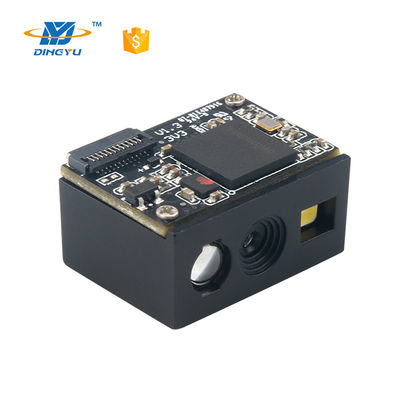

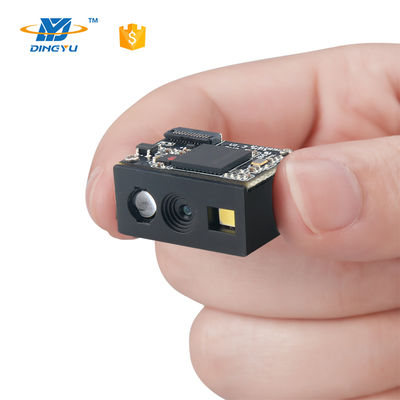

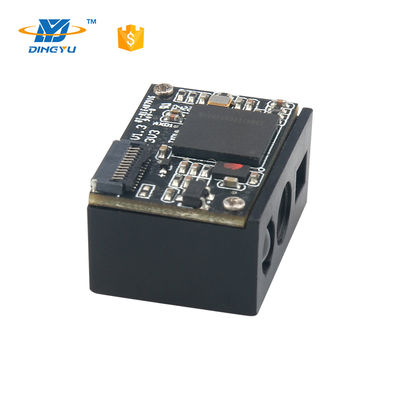

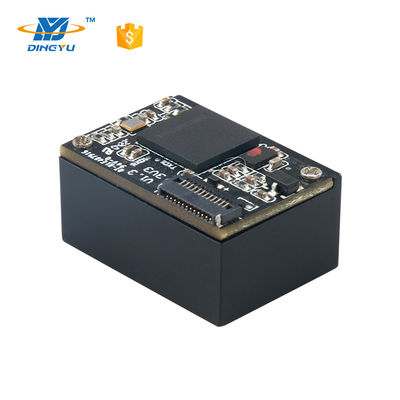

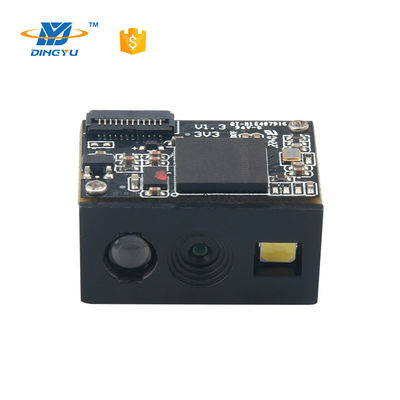

The DE2290H is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

With excellent reading performance, it can easily read barcodes on various media including paper, merchandise, and digital screens.

The integrated compact design allows for easy installation in a wide range of equipment. Widely used in self-service machines, price checking systems, lockers, and other industrial applications.

Product Specifications

Communication	USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type	CMOS, Global shutter
Resolution	300,000 pixel, 640×480
Reading precision	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of field	40mm~530mm (Different barcode range)
Decoding speed	35CM/S
Scan Mode	Manual, Continuous, Auto Sense, Command control
Prompt method	LED indicator light, buzzer (external circuit)
Field of view	41° × 31°
Scan angle	Roll: ±360°, Pitch: ±60°, Skew: ±55° (Test Conditions: CODE39, 10mil/0.25mm, PCS90%)
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light

Supported Symbologies

1D Barcodes:

UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Standard 2 of 5 (IATA 2 of 5), Codabar (NW-7), MSI, GS1 Databar (Omnidirectional, Limited, Expanded), China Post, Tepepen, Febraban, GS1 Composite

2D Barcodes:

QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code

Physical Specifications

Weight	Approx. 3.5g
Dimensions	21.3mm (L) × 15.50mm (W) × 11.50mm (H)
FPC Cable Length	5CM (FPC single-sided cable)
Interface Type	FPC 12PIN Pitch 0.5

Electrical Specifications

Power Supply	DC 3.3V
Current	200mA (Average Work), 95mA (Standby), 38mA (Sleep)

Environmental Specifications

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (No condensation)
Transport	10H@125RPM

Packaging & Shipping

Etykietka:

Osoba kontaktowa: DYscan

Tel: +8613691600322

Wyślij zapytanie bezpośrednio do nas
