Name: DS2806-1D 1D Barcode Scanner USB 300 Scans/sec CCD
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

Dom Produkty Skaner kodów kreskowych 1D

DS2806-1D 1D Barcode Scanner USB 300 Scans/sec CCD

Szczegóły Produktu:

Zapłata:

Minimalne zamówienie:	1

Kontakt

Szczegółowy opis produktu

Model nr.:	DS2806-1D	Typ interfejsu:	USB
Prędkość skanowania:	300 skanów/sek	Element skanowania:	CCD
CPU:	32-bitowy	Rezolucja:	1500
Precyzja czytania:	4MIL/0,1 mm (PCS90%, kod 39)	Głębokość pola:	40mm-500mm
Tryb skanowania:	Podręcznik, ciągły	Wydrukuj kontrast:	25%
Waga:	170G	Wymiar:	Długość 163,5 mm * Szerokość 65,0 mm * Wysokość 89,5 mm
Komunikacja:	USB, RS232	Zasilacz:	DC 5V@80MA (praca)
Temperatura robocza:	-20ºC do 50ºC
Podkreślić:	1D barcode scanner USB , CCD barcode scanner 300 scans/sec , DS2806-1D barcode scanner with warranty

DS2806-1D High-Performance 1D Barcode Scanner

The DS2806-1D is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for versatile applications, it efficiently reads barcodes from various surfaces including paper, products, and digital screens.

Key Features

Ergonomic design for comfortable extended use
Comprehensive compatibility with all mainstream 1D barcodes
High-speed 32-bit processor for rapid decoding (4mil precision)
Multi-language and system support
Dual interface options: USB and RS232
Ideal for retail, warehousing, logistics, healthcare, and mobile payment systems

Technical Specifications

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	1500
Reading Precision	≥4mil/0.1mm (PCS90%, Code 39)
Decoding Speed	300 times/second
Depth of Field	40mm-500mm
Scan Modes	Manual, Continuous
Scan Angles	Pitch: ±50° \| Roll: ±30° \| Skew: ±50°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, and 20+ other formats

Physical Parameters

Weight	≈170g
Dimensions	163.5mm × 65.0mm × 89.5mm
Communication	USB, RS232
Power Supply	DC 5V@80mA (operating)

Environmental Specifications

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)

Included Accessories

USB Cable for host device connection
RS232 Cable with USB power supply

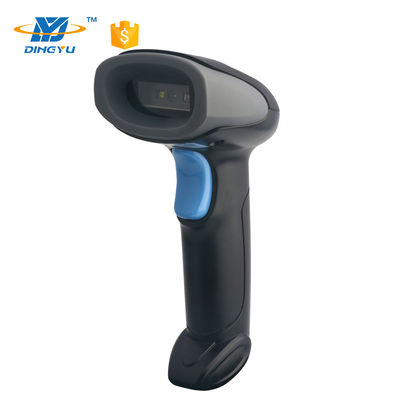

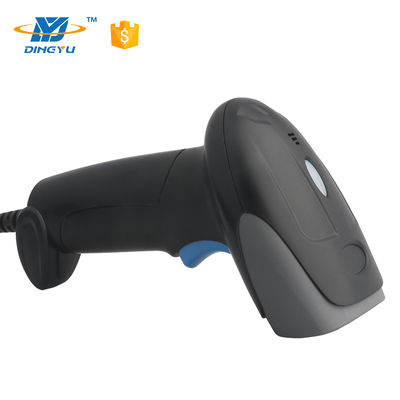

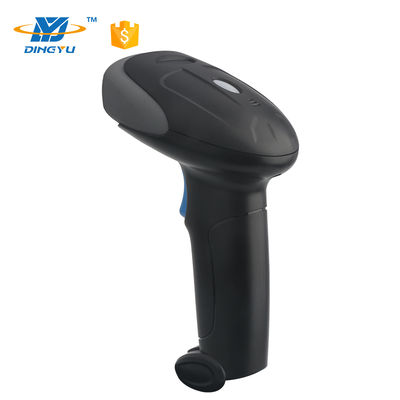

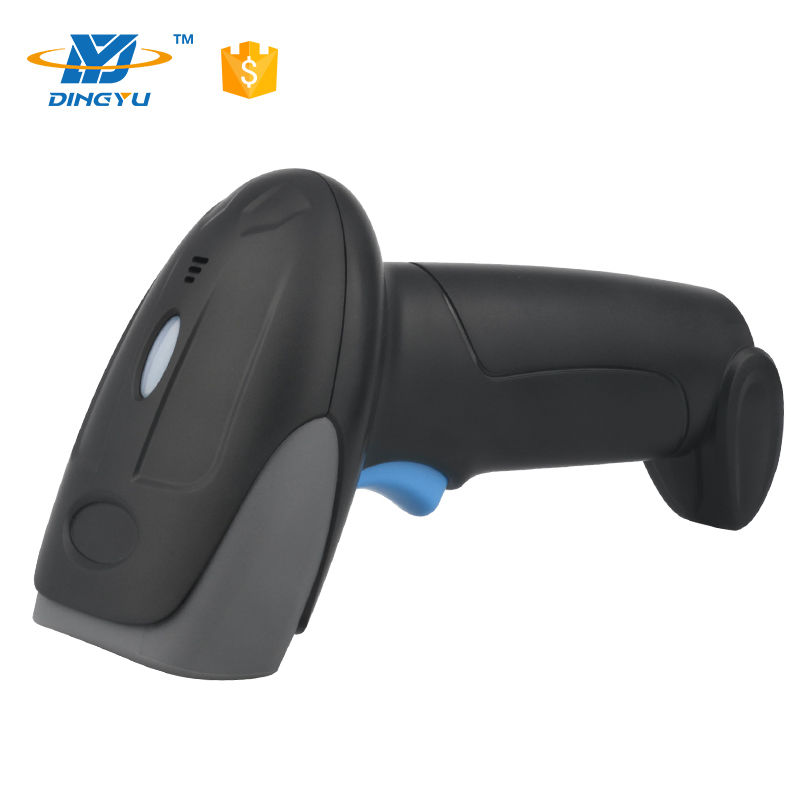

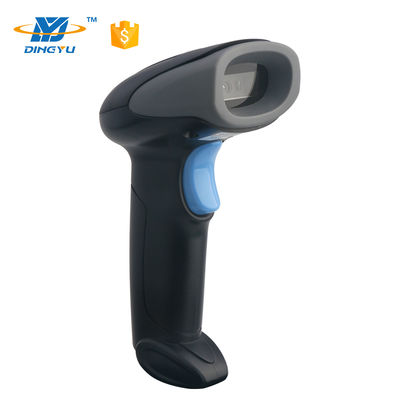

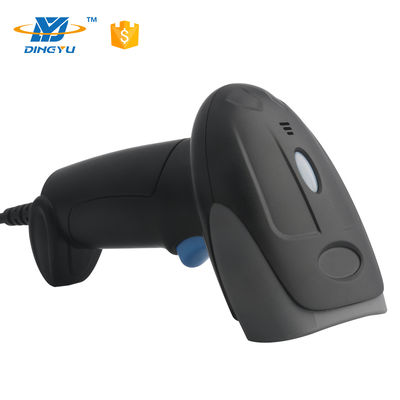

Product Images

Frequently Asked Questions

Q1: How do you ensure the quality of your barcode scanners?

As a professional manufacturer with 18 years of experience, we maintain rigorous quality control including CE, FCC, and ROHS certifications. Our testing includes engine age tests, wire bend tests (1 million cycles), and switch life tests.

Q2: What is the warranty period?

We provide a 12-month warranty for all our barcode scanners.

Q3: Do I need to install drivers?

No drivers are required. Our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems.

Q4: Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM services including custom branding, packaging, and documentation. Our technical team supports ODM development for specialized requirements.
