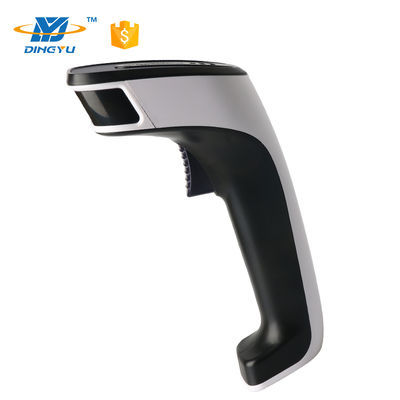

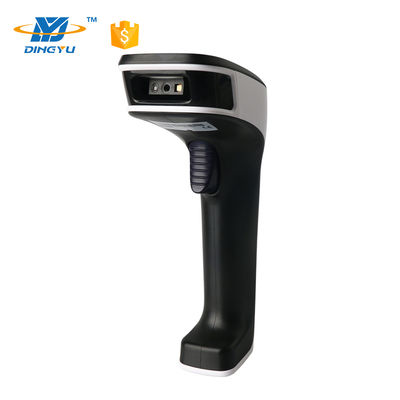

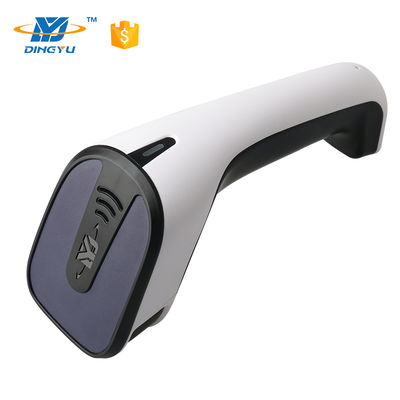

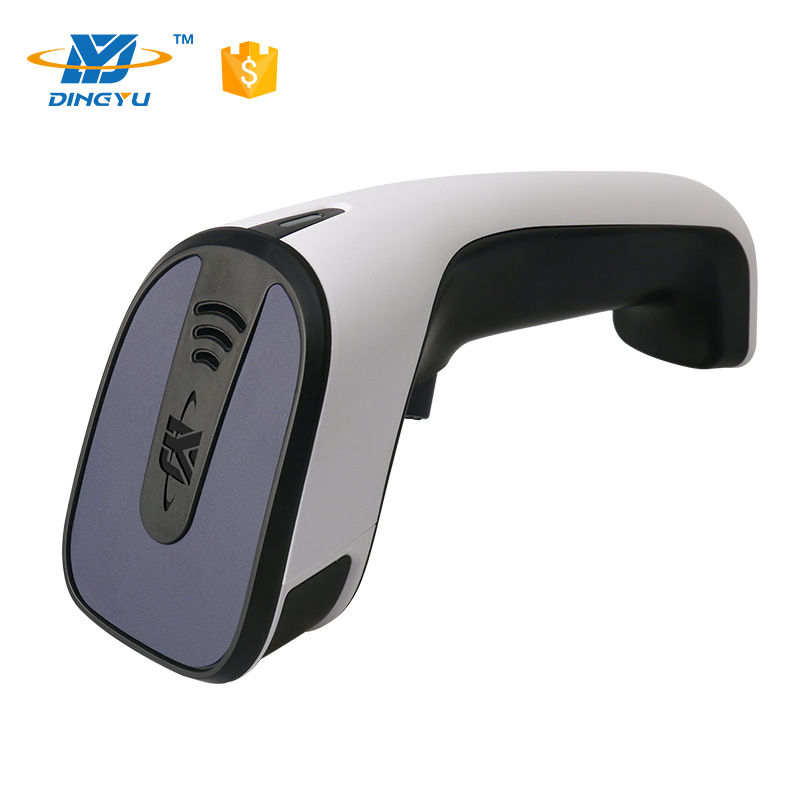

High Performance 1D CCD Barcode Scanner
DS5220-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. It reliably reads barcodes from paper, products, screens, and other media surfaces.
Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking applications.
Key Features
- Ergonomic design for comfortable extended use
- Reads all mainstream 1D barcode formats
- High-performance processor with fast decoding (3mil resolution)
- Multi-language and system support
- USB interface connectivity
- Wide application in supermarkets, warehouses, mobile payments, and chain stores
Technical Specifications
Performance
| Scan Type | Linear CCD |
|---|
| Light Source | Visible red light, 625±10nm |
|---|
| CPU | 32-bit |
|---|
| Resolution | 2500 |
|---|
| Reading Precision | ≥3mil/0.076mm (PCS90%, Code 39) |
|---|
| Decoding Speed | 300 times/second |
|---|
| Depth of Field | 20mm-680mm |
|---|
| Scan Modes | Manual, Continuous, Auto Sense, Flashing, control command |
|---|
| Prompt Method | LED indicator, buzzer |
|---|
| Scan Angle | Pitch: ±60°, Roll: ±30°, Skew: ±60° |
|---|
| Print Contrast Signal | ≥20% |
|---|
| Ambient Light | Dark environment to indoor natural light |
|---|
| Supported Symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc. |
|---|
Physical Parameters
| Weight | ≈160.8g (without cable) |
|---|
| Dimensions | 68.4mm × 170.6mm × 87.6mm |
|---|
| Communication | USB, USB-COM |
|---|
| Interface | USB, USB-COM |
|---|
| Power Supply | DC 5V@80mA (operating) |
|---|
Environmental Specifications
| Operating Temperature | -20°C to 50°C |
|---|
| Storage Temperature | -40°C to 60°C |
|---|
| Humidity | 5% to 95% (non-condensing) |
|---|
| Transport Vibration Test | 10H@125RPM |
|---|
Included Accessories
| Cable | USB Cable for connecting to host devices |
|---|
| RS232 Cable with USB power supply for host connection |
|---|
Frequently Asked Questions
Q1: How do you ensure high quality barcode scanners?
DYscan: As professional barcode scanner manufacturers with 18 years of field experience, we maintain strict quality control with dedicated QC teams and testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All products meet CE, FCC, and ROHS certifications.
Q2: What quality control measures do you implement?
DYscan: We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes comprehensive testing before shipment.
Q3: What is the warranty period?
DYscan: 12-month warranty coverage.
Q4: How do you maintain stable performance?
DYscan: Our assembly line production process ensures consistency, with each product tested at least 4 times before delivery.
Q5: Do you offer OEM/ODM services?
DYscan: We provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development projects.
Q6: What are your company strengths?
DYscan: As a specialized scanner manufacturer, we maintain dedicated departments for R&D, production, testing, marketing, sales, and customer service to ensure comprehensive support.
Q7: Are drivers required for operation?
DYscan: No drivers needed - our scanners support plug-and-play functionality with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
