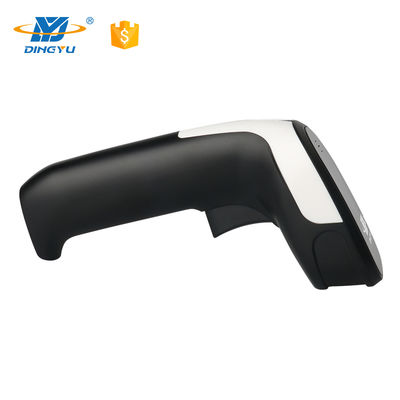

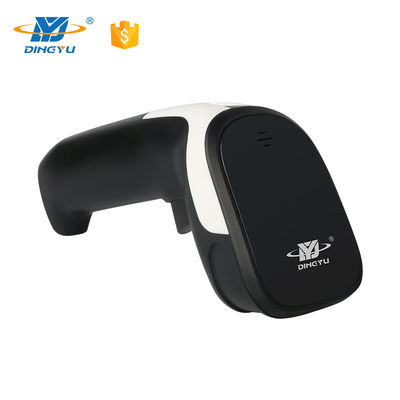

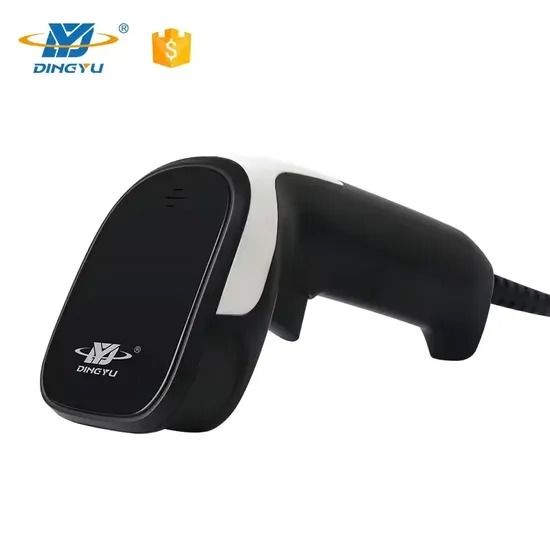

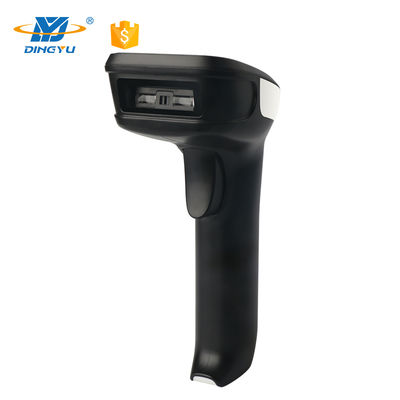

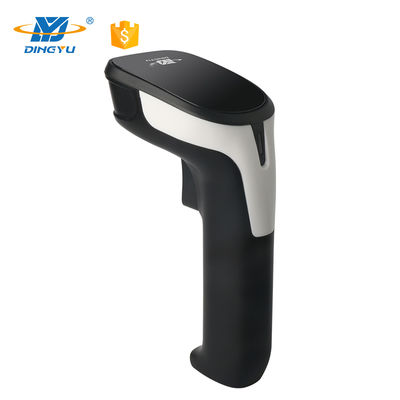

Name: DS5110 1D CCD Barcode Scanner USB 3mil Resolution 147g
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Dom Produkty Skaner kodów kreskowych 1D

DS5110 1D CCD Barcode Scanner USB 3mil Resolution 147g

Szczegóły Produktu:

Zapłata:

Minimalne zamówienie:	1
Cena:	10

Kontakt

Szczegółowy opis produktu

Model nr.:	DS5110	Typ interfejsu:	USB, RS232
Element skanowania:	CCD	Rozdzielczość aparatu:	640*480
Rozdzielczość kodu kreskowego:	3MIL Code39	Głębokość pola:	10-600mm
Tryby skanowania:	Podręcznik, ciągły, auto skanujący, migający	CPU:	32-bitowy
Długość kabla:	1,5 m	Waga:	147g
Zasilacz:	DC 5V 80MA	Temperatura robocza:	-20 do 50°C
Temperatura przechowywania:	-40 do 70°C	Wymiary:	L161mm * W63mm * H80mm
Szybkość dekodowania:	300 razy/s
Podkreślić:	1D CCD barcode scanner USB , lightweight barcode scanner 147g , high resolution barcode scanner 3mil

1D CCD Barcode Code39 Wired Handheld POS Terminal Barcode Scanner

The DS5110 is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Designed for professional use, it efficiently reads barcodes from various surfaces including paper, products, and digital screens.

Ideal for multiple industries including manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset management.

Technical Specifications

Parameter	Specification
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/second
Depth of Field	10mm-600mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing
Scan Angles	Pitch: ±60° \| Roll: ±30° \| Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Dimensions	161mm (L) × 63mm (W) × 80mm (H)
Weight	≈147g (without cable)
Communication Interfaces	USB (USB-KBW, USB-COM), RS232
Power Supply	DC 5V@80mA (operating)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity Range	5% to 95% (non-condensing)
Drop Resistance	1.5 meters
